ZCQ Self-suction Magnetic Pump/Magnetic Drive Pump

  • >=1 Sets
    $300.00
Horsepower:
0.01~50KW
Maximum Flow Rate:
3~102m3/h
Maximum Head:
12~50m
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Sureway
Model Number:
ZCQ
Structure:
Leak free pump
Usage:
Corrosive fluids, harmful fluids
Power:
30W~50000W
Fuel:
Electrcity
Pressure:
0.1~5bar
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
Plywood box
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 5 To be negotiated
Product Description

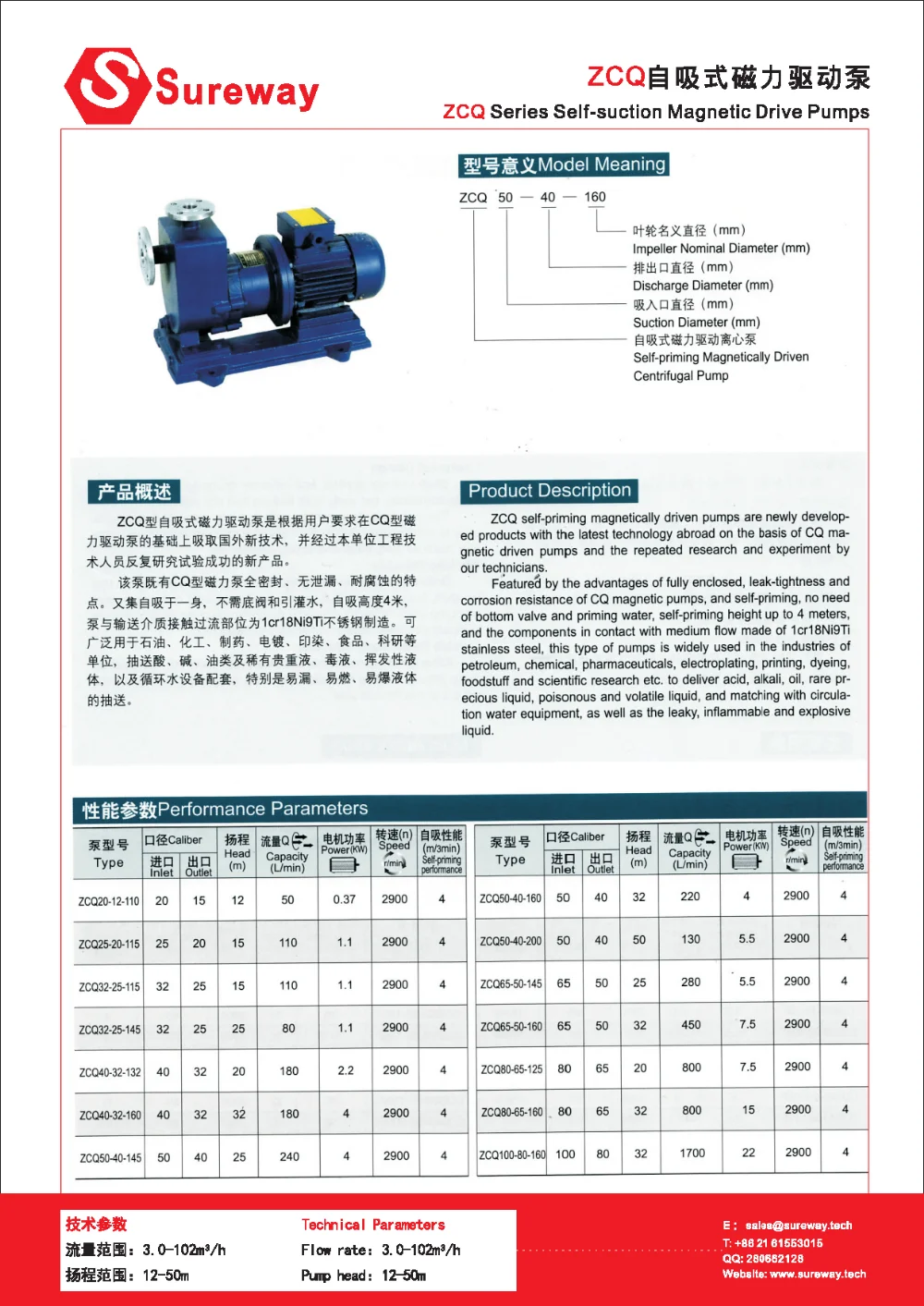

ZCQ Self-suction Magnetic Drive Pump

ZCQ Self-priming Magnetic Drive Pump

Magnetic pump (also known as magnetic drive pump) is mainly composed of pump head, magnetic drive (magnetic cylinder), motor, base and other parts.

The magnetic drive of a magnetic pump consists of an external magnetic rotor, an internal magnetic rotor and a non-magnetic isolation sleeve. When the motor drives the external magnetic rotor to rotate through the coupling, the magnetic field can penetrate the air gap and the non-magnetic material isolation sleeve, drive the internal magnetic rotor connected with the impeller to rotate synchronously, realize the non-contact synchronous transmission of power, and transform the leaky dynamic seal structure into the zero-leakage static seal structure. Because the pump shaft and internal magnetic rotor are completely closed by the pump body and isolation sleeve, the problem of "dropping and leakage" is thoroughly solved

Detailed Images

Main application

This product is widely used in the industries of petrochemical, acid and alkali production, non-ferrous smelting, the acid washing in automotive manufacturing, rare earth separation, pesticides, dyest­uff,harmaceuticals, papermaking, electroplating,radio etc.

Service temperature: -20℃~100℃.

Packing & Delivery

Packing by plywood box
