ISW Series Horizontal Single stage cast iron, stainless steel Centrifugal Pump

  • >=1 Sets
    $400.00
Horsepower:
0.018~220KW
Maximum Flow Rate:
1450m3/h
Maximum Head:
156m
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 8 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Sureway Pump
Model Number:
ISW Series
Structure:
Single-stage Pump
Usage:
Fluid conveying pump
Flow rate:
1.9~1450m3/h
Pump head:
4.5~156m
Explosion proof grade:
Customer specified
Working temperature:
-20℃~100℃
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
Plywood box
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 8 To be negotiated
Product Description

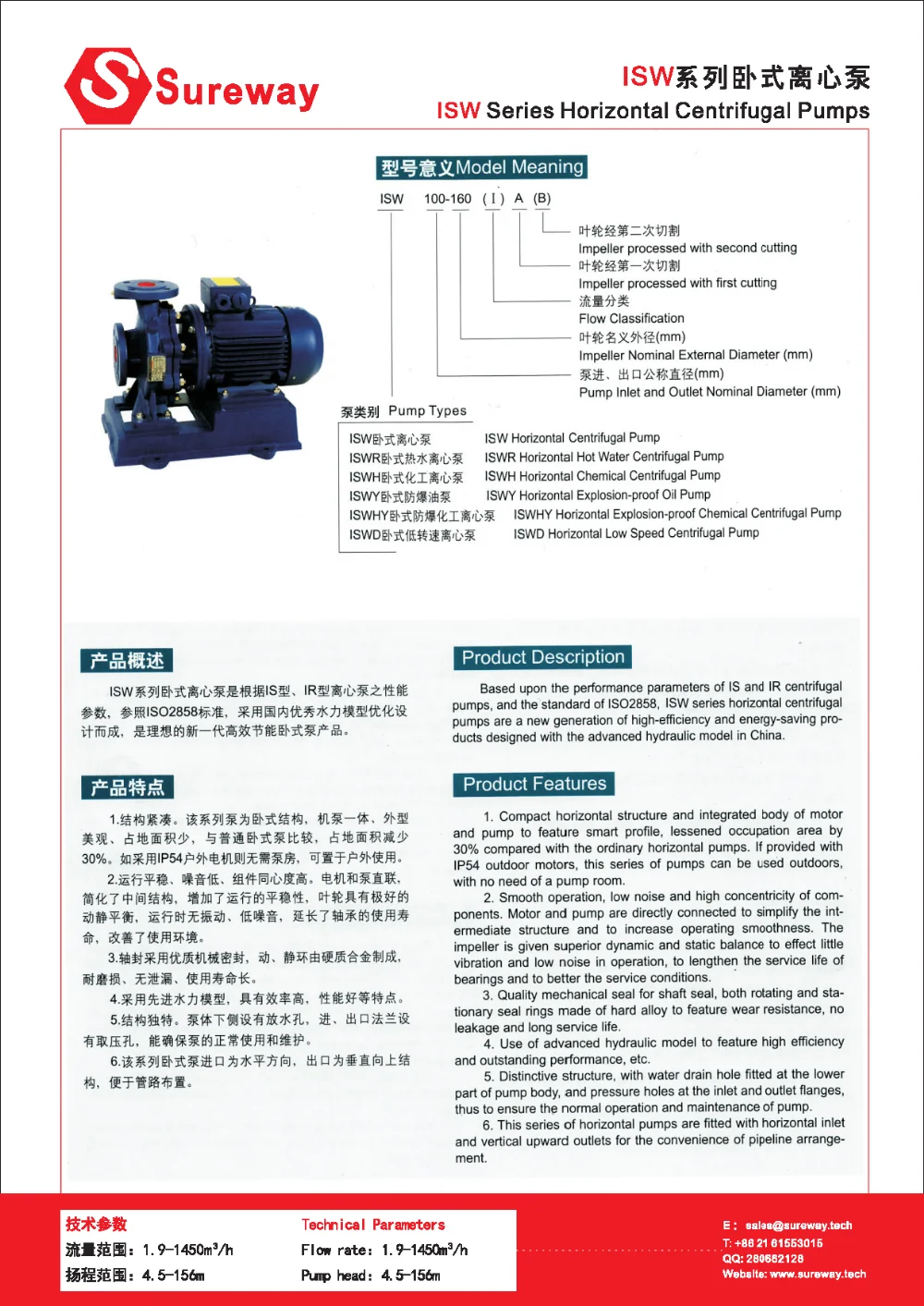

ISW Series Horizontal Centrifugal Pump

1. Compact horizontal structure and integrated body of motor and pump to feature smart profile, lessened occupation area by 30% compared with the ordinary horizontal pumps. If provided with IP54 outdoor motors, this series of pumps can be used outdoors, with no need of a pump room.

2. Smooth operation, low noise and high concentricity of components. Motor and pump are directly connected to simplify the intermediate structure and to increase operating smoothness. The impeller is given superior dynamic and static balance to effect little vibration and low noise in operation, to lengthen the service life of bearings and to better the service conditions.

3. Quality mechanical seal for shaft seal, both rotating and stationary seal rings made of hard alloy to feature wear resistance, no leakage and long service life.

4. Use of advanced hydraulic model to feature high efficiency and outstanding performance, etc.

5.Distinctive structure, with water drain hole fitted at the lower part of pump body, and pressure holes at the inlet and outlet flanges, thus to ensure the normal operation and maintenance of pump.

6. This series of horizontal pumps are fitted with horizontal inlet and vertical upward outlets for the convenience of pipeline arrange­men!.

Detailed Images
Packing & Delivery

Packing by Plywood box
